Description

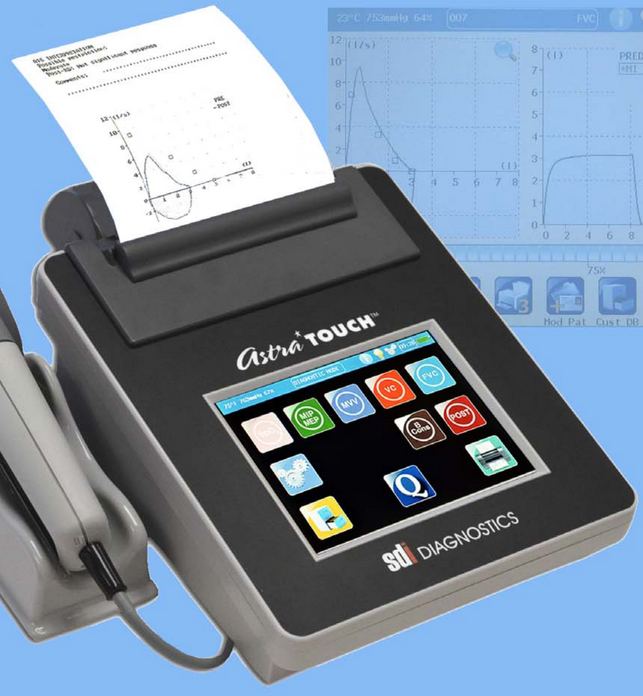

SDI Diagnostics AstraTouch Spirometer: Touchscreen Spirometry Made Simple and Comprehensive
Introducing the AstraTouch™ Desktop Spirometer — designed for easy navigation during comprehensive spirometry testing. Experience sophisticated simplicity paired with state-of-the-art features, allowing clinicians to diagnose and interpret results seamlessly.
Key Features:
-
Comprehensive Spirometry Testing: Enables making diagnostic decisions from the screen, the resident printer, or off-line report writers.
-
Easy Data Management: PC links via USB or optional Bluetooth for easy archival storage, EMR test transfers, or real-time direct testing.
-
Intuitive Operation: Simplified operations, rich configurability options, quick data entry, and review capabilities expand the scope of spirometry testing.
-
Real-time Results: Observe test results, download to patient records, perform interactive testing on your PC, or print hard copies of selected data.
-
Bright, Sharp RealColor Display: Offers clear visualization of graphics and tabular data during testing. Fingertip touch of the icons ensures easy navigation, saving time during test visits.
-
AstraPro™ Software: Enables smooth data transfer from the spirometer to PC or EHR/EMR. Choose from pre- and post-bronchodilator, bronchial challenge testing, or the incentive program. AstraTOUCH™ can communicate directly via USB or wirelessly via Bluetooth.
AstraTouch™ Features Include:
- Full-color touchscreen display
- AccuFlo digital turbine
- Flow-trigger, patient-initiated testing
- Measures over 40 parameters of FVC, VC, MVV
- Bluetooth PC Communications
- Choice of 16 predicted sets
- AstraPro software and on-board thermal printer
- Meets NIOSH standards with test quality assurance prompts
- Four selectable interpretations and automated maneuver acceptability
- Bronchial challenge module, no proprietary disposables, and audible end-of-test-alert
- Optional modules: Pulse Oximetry, MIP/MEP, Weather station, and Ethernet connectivity
Technical Specifications:
-
Forced Parameters Measured:
- Forced Vital Capacity: FVC, FEV1, FEV1/FVC, PEF, FEF50%FEV6, [...]
- MVV: MVV, Br./min
- Relaxed Parameters Measured: VC, TV, ERV, IRV, IC, Ti, Te, Tt, Ti/Tt
-
Hardware Specifications:
- Storage capacity: 3000+ study database
- Display: 5.7” High-resolution color VGA touchscreen
- Communication: USB to printer and PC, Ethernet I/O, Bluetooth to PC
- Dimensions: 7.7” x 10.6”x 3.9”
- Weight: 3.7 lbs.
- Power supply: 110 to 240V, 50 to 60 Hz or NiMH battery pack
- Storage Temperature: -4o F to 158o F
- Printer: 110 mm thermal graphic printer
Optional additions: Flex Pulse Oximetry module and program, NiMH battery/charger pack, Calibration syringe, MIP/MEP, Weather Station (Barometric Pressure, Temperature, Humidity), Sniff -- Rhinomanometry, Carrying Case.
