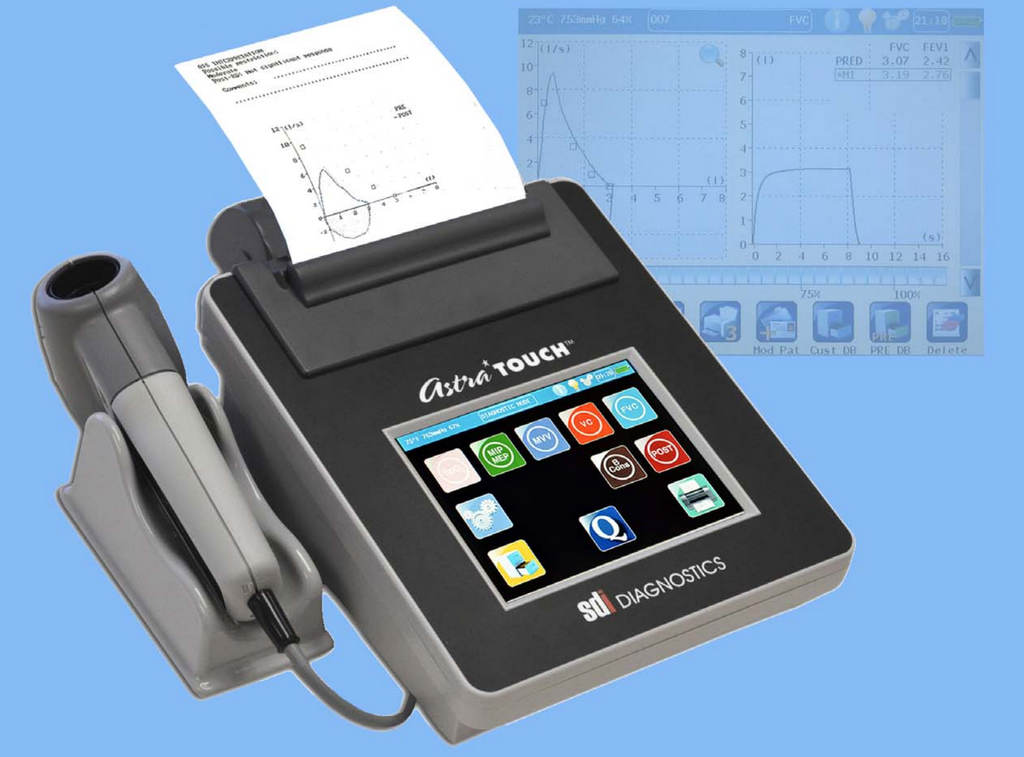

AstraTouch Spirometer Kit: Comprehensive Touchscreen Spirometry
The AstraTouch Desktop Spirometer Kit brings together precision, ease of use, and comprehensive spirometry capabilities. This kit includes the AstraTouch Spirometer, 50 AstraGuard Filters for optimal infection protection during tests, and a rechargeable battery for uninterrupted usage.
Key Features:
-
Included in the Kit:
- AstraTouch Spirometer
- 50 AstraGuard Filters
- Rechargeable Battery
-
Multifunction Capabilities: Make diagnostic decisions from screen data, the resident printer, or off-line report writers.
-
Connectivity Options: PC links via USB, optional Bluetooth, or Ethernet.
-
AccuFlo Digital Turbine: Ensures accuracy and reliability, with flow triggers to enhance patient comfort and provide meaningful data.
-
Customizable Firmware: Choose from various predicted authors, interpretations, quality prompts, parameters, graphics, and more.
-
Optional Pulse Oximetry: Quick and straightforward testing for O2 saturation and heart rate parameter measurements.
-
AstraGuard Bacterial/Viral Filter: Provides outstanding infection protection for both expiratory and inspiratory spirometry testing.
-
AstraPro Software: Interfaces with your PC through USB or optional Bluetooth for seamless data transfer.
-
Easy Navigation: Fingertip touches on the bright, sharp RealColor display for efficient test procedures.
Technical Specifications:
- Forced Parameters Measured: FVC, FEV1, FEV1/FVC, PEF, FEF50%FEV6, FEV1/FEC, PEF, FEF50%, FEF25-75%, FEV6, FEV1/FEV0.5, PEFT, Vext, FIVC, FIF50%, FEF50/FIF50, QC Grades, FEV .5, FEV3, FEV.5/FVC, FEV3/FVC,FEV1/VC, FEV1/FEV6, FEV1/PEF, FEV1/FIV1, PEF/PIF, FEF25%, FEF75%, FEF75-85%, FET25-75%, FET100, FIV1, FIV1/FIVC, PIF, MTT, MVVInd, Lung age
- MVV: MVV, Br./min
- Relaxed Parameters Measured: VC, TV, ERV, IRV, IC, Ti, Te, Tt, Ti/Tt
- Optional Bronchoconstriction: FVC, FEV1, PEF, FEF25-75%, PDx
-
Hardware Specifications:
- Storage Capacity: 3000+ study database
- Display: 5.7” High-resolution color VGA touchscreen
- Communication: USB to printer and PC
- Dimensions: 7.7” x 10.6”x 3.9”
- Weight: 3.7 lbs.
- Power Supply: 110 to 240V, 50 to 60 Hz or NiMH battery pack
- Storage Temperature: -4°F to 158°F
- Printer: 110 mm thermal graphic printer
- Others: Ethernet I/O, Bluetooth to PC, Flex Pulse Oximetry module and program, NiMH battery/charger pack, Calibration syringe, MIP/MEP, Weather Station (Barometric Pressure, Temperature, Humidity), Sniff -- Rhinomanometry, Carrying Case.
