Description

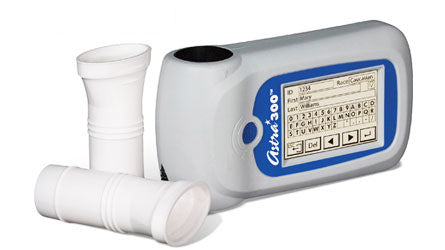

Experience the blend of innovation and ease with the Astra300 Spirometer by SDI Diagnostics. A remarkable piece of medical equipment, this spirometer offers both the sophistication of touch screen technology and the practicality of handheld convenience.

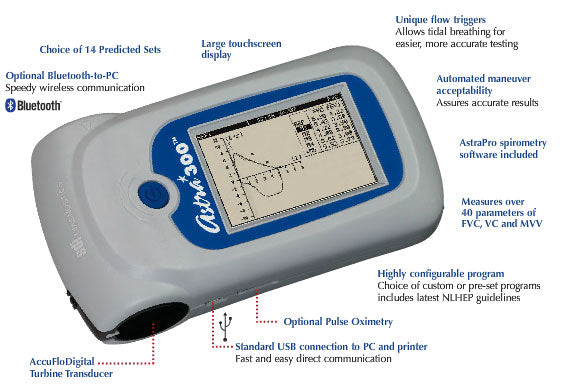

Key Features:
- Sophisticated Touchscreen: The responsive and vibrant touchscreen simplifies patient data entry, testing, reporting, and even data export to PCs or printers.
- Accuracy with SDI: Benefit from up to 40 detailed spirometry test parameters, all measured with unparalleled precision.
- AccuFlo™ Digital Turbine: Features a bidirectional turbine with an optoelectronic rotary sensor. It's easily detached for cleaning, and sapphire bearings ensure optimal performance throughout its life.
- Wireless Communication: Choose the optional Bluetooth-to-PC module for effortless, cordless data transfer.
- Turbine webAccuFlo™: Allows tidal breathing before the patient's expiratory effort, enhancing patient comfort and test quality.
- Testing Flexibility: Choose the testing configuration that best meets your needs, from real-time result observations to downloading results for permanent records.
- Storage Solution: A free padded, high-impact plastic carrying case ensures your Astra300 and its accessories stay safe, organized, and ready for use.
Enhancements:
- AstraPro™ Software: Advanced software for data transfer, real-time pre/post-bronchodilator and bronchial challenge testing, and more.
- Comprehensive Reporting: Customize final reports, with a choice of over 40 FVC, VC, and MVV parameters.
- Additional Modules: From the Occupational Health Module to Pulse Oximetry and more, expand the Astra300's capabilities.
Technical Specifications:
-
Forced Parameters Measured:
- Forced Vital Capacity: FVC, FEV.5, FEV1, FEV3, FEV6, FEV1/FVC, FEV1/FEV6, FEV.5/FVC, FEV3/FVC, and more.
- MVV: Br/min
-
Relaxed Parameters Measured:
- VC: VC, TV, ERV, IRV, IC, Ti, Te, Tt, Ti/Tt, and more.
- Maneuvers per patient: 5 in total; with the best test and last test highlighted.
- Interpretation options: Kory, Miller, ATS, NLHEP (Ferguson).
- Predicted sets: 14 in total, with selectable ethnic corrections.
- Language options: English or Spanish.
-
Measurement Scale (BTPS):
- Flow range: 0–16 L/sec
- Volume: 0–10 L
- Measurement method: Infrared Interruption via Digital Turbine
- Dynamic flow resistance: Less than 1.5 cm H20/L/sec at 14 L/sec
-
Precision of Measurements (BTPS):
- At highest volume: +/- 3% or 50 mL
- At highest flow: +/- 5% or 150 mL
- Time-related precision: 0.5%
- Volume resolution: Less than 6 mL
- Sampling frequency: 50 Hz
-
Hardware Specifications:
- Storage capacity: Can store over 1000 studies.
- Keyboard: Alphanumeric LCD touchscreen
- Communication: Standard USB connection to PC and printer, RS232, with optional Bluetooth to PC.
- Dimensions: 5.75" x 3.25" x 4.0"
- Power supply: Operated by 2 x 1.5 DC Alkaline or NiMH batteries.
- Weight: 9 oz (250 g)
- Additional Modules: Optional OSHA module, Flex Pulse Oximetry module and program, NiMH battery/charger pack, and a calibration syringe.
- Printer Compatibility: Works with printers using USB connection and PCL6 drivers.
Compliance: Astra spirometers comply with 2005 ATS/ERS guidelines for spirometry.
Achieve medical excellence with the Astra300 Spirometer. Whether you're in a lab, office, or any other clinical setting, this device promises reliability, ease, and precision in every breath measured.
