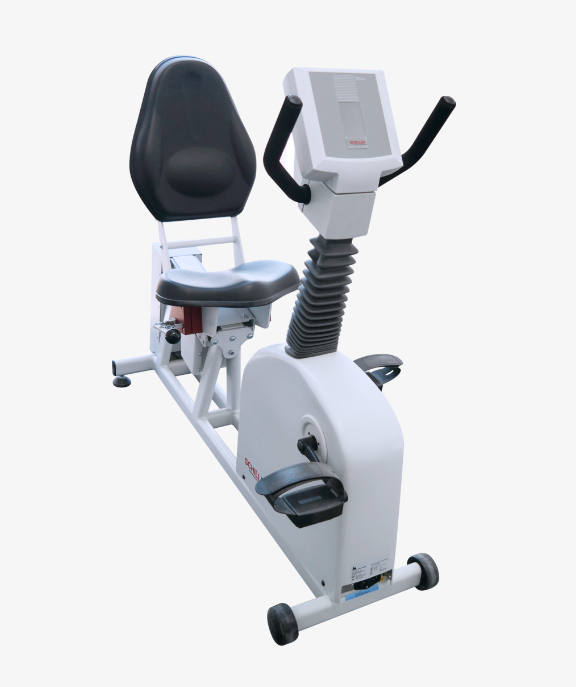

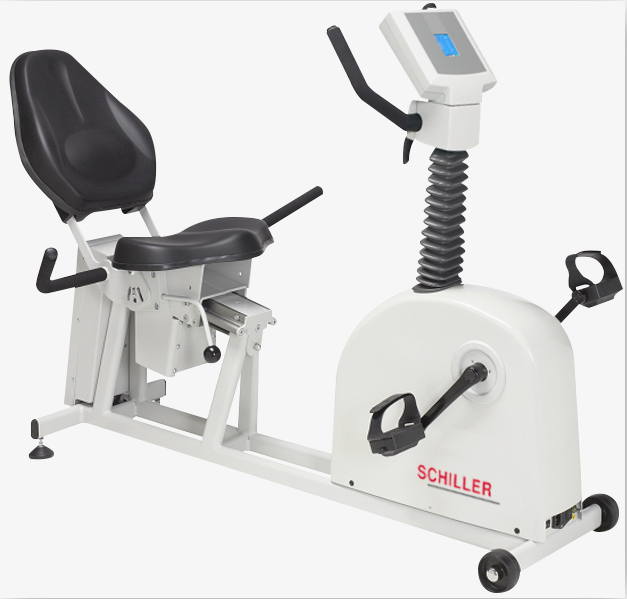

Schiller ERG 911S Seat Ergometer for Bariatric Patients

The Schiller ERG 911S Seat Ergometer is a robust piece of equipment designed to facilitate cardiovascular stress tests, training, and rehabilitation for bariatric or elderly patients. This ergometer can handle a weight of up to 550 lbs, making it ideal for use in bariatric patient care.

With an adjustable backrest and comfortable sitting position, it facilitates extended training sessions while minimizing patient discomfort. It is equipped with handles at the front of the ergometer to aid patients in mounting and dismounting.

Key Features:

• Compatibility: Works with all Schiller exercise EKG devices.
• Large Graphical Display: Offers a clear view of the ergometry data with a display size of 4 x 3 inches.
• Strong and Durable: Boasts a stable steel construction that can support a maximum weight of 550 lbs.
• Adjustable: Features electrical seat adjustment and manual backrest adjustment.
• Interface: Comes with a galvanically isolated RS-232 interface for automatic computer control.
• Comfort: Equipped with handgrips next to the seat for patient's comfort.
• Maintenance-Free Drive: Provides a pleasant pedaling sensation and is almost noiseless.
• Ease of Cleaning: The surface coating facilitates easy cleaning.
• Safety and Durability: With its strong and modern design, this ergometer offers a high level of safety and durability.
• Ease of Use: Thanks to its low frame, it is easy to use for elderly or disabled patients.

Technical Specifications:

• Patient’s body size: 47.24 – 82.67 inches
• Maximum Patient’s weight: 550 lbs
• Device weight: 165.35 lbs
• Control unit: 180° turntable
• Supply voltage: 110-120 V with 60 Hz
• Display: TFT-Display 57 x 43 mm (VGA)
• Drive mechanism: Almost noiseless and maintenance-free drive unit with Poly-V belt
• Braking principle: Computer controlled eddy current brake with permanent torque control
• Range of revolutions: 30 to 130 rpm
• Load range: 1 to 20 watts, dependent on revolutions per minute. 20 to 999 watts, independent on revolutions per minute.
• Interfaces: RS232 (galvanically isolated)

The Schiller ERG 911S Seat Ergometer offers an excellent price-performance ratio and is a suitable investment for medical facilities treating bariatric or elderly patients.
