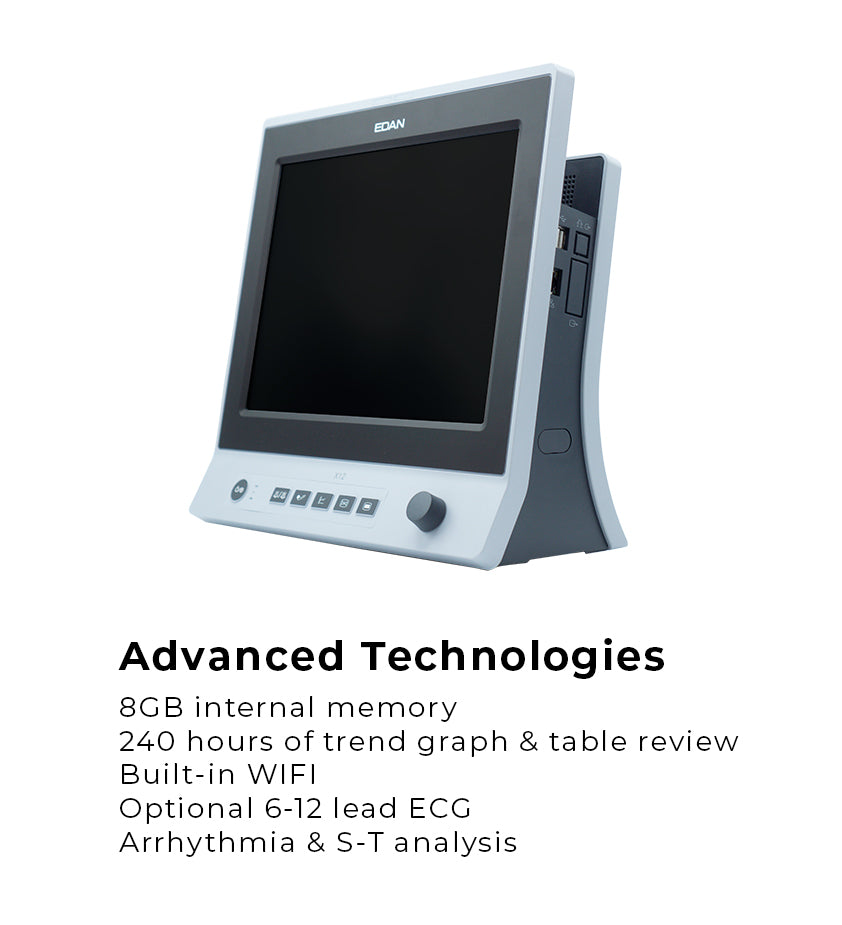

EdanUSA X12 Advanced Patient Monitor

The EdanUSA X12 Patient Monitor is a state-of-the-art medical device expertly engineered to fulfill the primary clinical needs in various medical settings such as emergency rooms, general wards, rehabilitation centers, cardiac intensive care units, and in-hospital transfer units. The X12 Patient Monitor series is available in various configurations to meet specific clinical needs:

1. X12 - This configuration includes a 12" touch screen and Wi-Fi. Standard measurements include 3/5-lead ECG, RESP, NIBP, Edan SpO2, 2-TEMP, PR, HR, and comes equipped with an internal memory for previous data review. The X12 offers flexibility and user-friendly navigation for healthcare professionals, promoting efficiency and accuracy in patient monitoring.

2. X12-G2 - In addition to the features offered by the X12, the X12-G2 includes an internal OEM Edan Sidestream G2 CO2 module. This advanced module utilizes traditional water traps and is compatible with any male luer lock cannula with a generic connection, enhancing the monitor's adaptability and functionality.

3. X12.P - Similar to the standard X12 configuration, the X12.P also includes a printer installed onto the side of the unit. This feature enables instant printouts, promoting immediate review and documentation, thereby improving overall efficiency in patient care and monitoring.

4. X12-G2.P - This variant incorporates all features of the X12-G2 and includes a printer installed on the side of the unit. The availability of immediate printouts facilitates efficient review and record keeping, thereby augmenting the process of patient monitoring and care.

Each configuration of the EdanUSA X12 Patient Monitor features a unique 6-lead system with automatic chest lead identification, making cardiac monitoring more comprehensive and flexible. The X12 series boasts iSEAP™ ECG monitoring algorithm with 33 types of arrhythmia detections and SEMIP® ECG diagnosis algorithm with 208 findings, ensuring highly accurate cardiac monitoring.

The X12 series employs a superior water trap design and iCARB algorithm with Intelligent CO2 pseudo wave identification technology. These features enable accurate monitoring even with a sampling rate as low as 50ml/min. Furthermore, the X12 series presents EDAN G2 CO2 (sidestream) for customization for 6-lead placement, auto-detection of arrhythmias, and ECG findings over age/gender diversities.

In addition to this, the X12 series uses a dual dust filter design for accurate NIBP readings and an iCUFSTM algorithm with smart deflation technology for routine maintenance. It is designed to resist motion and low perfusion, and provides reference readings of Perfusion Index (PI) from 0 to 10 according to perfusion changes. Simultaneous measurements of SpO2 and NIBP of the same limb can be performed as well.

The EdanUSA X12 Patient Monitor series, with a user-friendly 12.1" screen, offers optimal functionality, efficiency, and user convenience, thus significantly enhancing the clinical experience of medical professionals. Choose the configuration that best suits your clinical needs and experience an elevation in the standard of patient care.
