Description

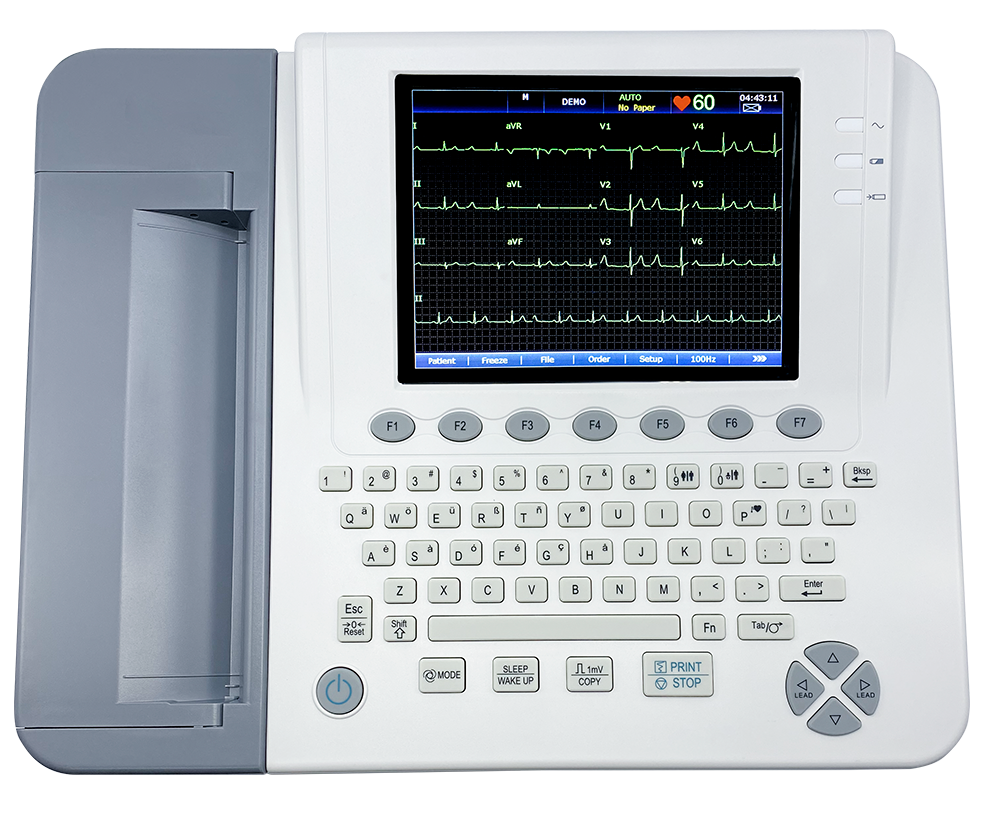

EdanUSA SE-1200 Express ECG Machine
The EdanUSA SE-1200 Express ECG Machine brings together precise clinical performance and user-friendly design, delivering outstanding cost-effectiveness. Its unique Glasgow Interpretation aids in making your workflow more efficient and accurate, offering reliable and comprehensive cardiac assessments.

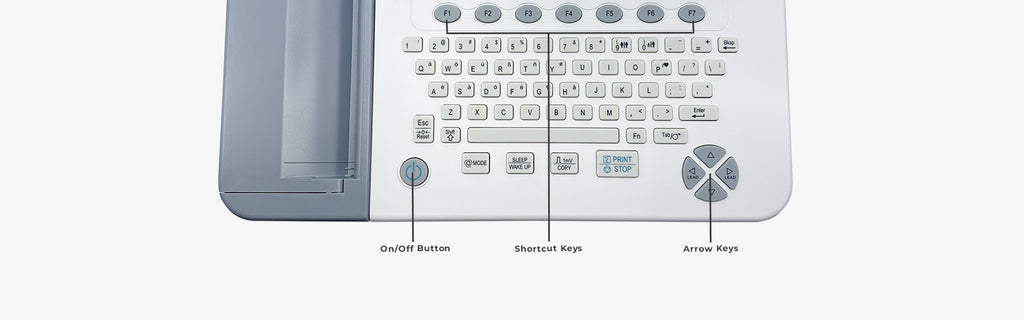

The machine's intuitive features like one-touch operation and shortcut keys facilitate quick and effortless operation. With an 8-inch LCD screen, an alphanumeric keyboard, and barcode scanner support, it simplifies data input and navigation for healthcare professionals.

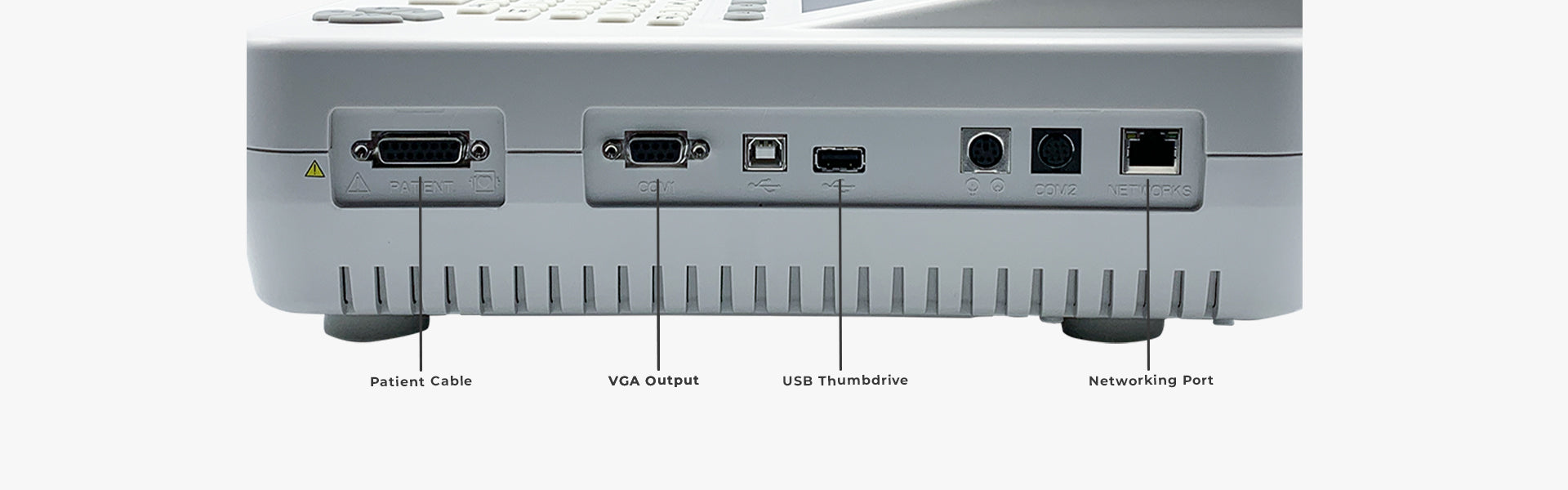

The SE-1200 Express comes with the ability to store up to 800 ECGs, ensuring an extensive repository of patient data for future reference and comparisons. It supports data transmission to PC via LAN/WIFI and offers multiple data export options including PDF, SCP, FDA-XML, and DICOM. The machine comes equipped with an onboard PDF creator to easily transmit data to USB.
To enhance the clinical performance, it features weak signal detection with a 24-bit A/D converter technology, anti-noise technology with comprehensive filters, and a high CMRR of over 115dB. It provides real-time ECG waveforms freezing and review for 120 seconds, automatic measurements and interpretation tested by CSE/AHA/MIT database, and extended printing when arrhythmia is detected.
For a more detailed ECG analysis, the machine integrates advanced Vector ECG. The optional SE-1515 PC Software allows users to compare previous ECGs, increasing confidence in diagnosis and making it easier to export ECG reports.
There are two main offerings in the SE-1200 Express series:
EdanUSA SE-1200 Express Basic
- 12-Channel ECG
- 8.4" LCD display
- Keyboard
- WiFi connectivity
- Onboard PDF creator
- 800 test internal memory
- Glasgow interpretation
EdanUSA SE-1200 Express
- 12-Channel ECG
- 8.4" LCD display
- Keyboard
- WiFi connectivity
- Color touchscreen
- Onboard PDF creator
- 800 test internal memory
- Glasgow interpretation
With the SE-1200 Express ECG Machine series, you can expect a fusion of high-end clinical performance, convenience, and cost-effectiveness that improves patient care and optimizes your workflow.
Physical Specifications:
- Dimensions: 420mm×330mm×120mm
- Weight: 5kg (Excluding recorder paper and battery)
- Display: 8 inch, 800×600 multicolor LCD screen
Power Supply:
- Mains Supply: Operating Voltage = 100V-240V; Operating Frequency = 50Hz/60Hz; Input Current = 0.9-0.4A
- Internal Li-ion Battery Pack: Rated voltage = 14.8V; Rated capacity = 2500/5000mAh (1.5/2.5 hours continuous printing, 300/450 ECG reports); Necessary Charge time: 3/6 hours
