Description

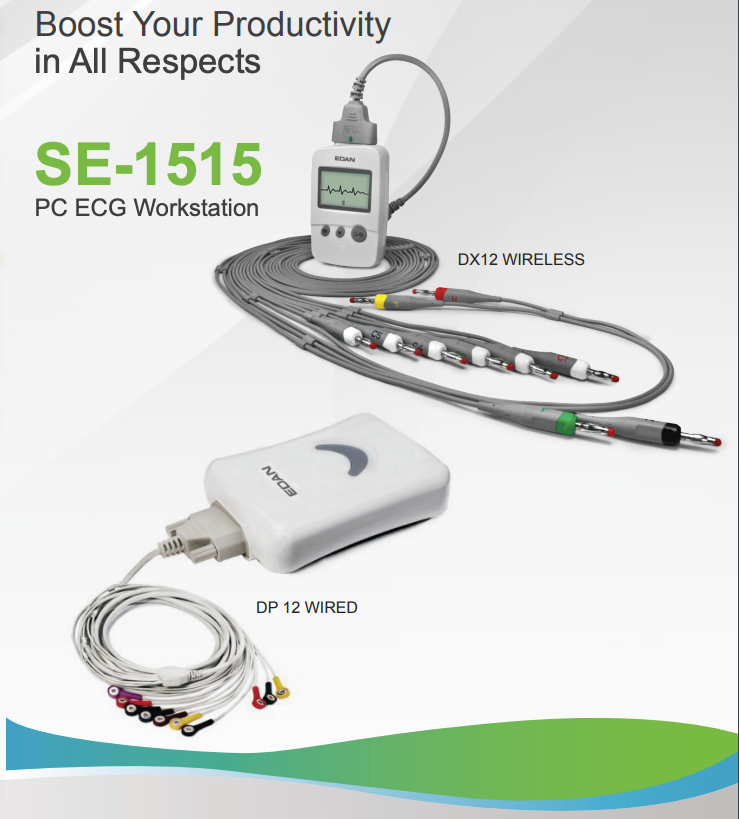

The EdanUSA SE-1515 DX12 ECG is a cutting-edge, PC-based wireless 12-channel ECG device designed for modern healthcare settings. This device comes with an acquisition box that connects via USB to your PC, a wireless transmitter for patients, and user-friendly software. The standard resting ECG includes Glasgow interpretation with an optional upgrade for stress testing. Additionally, the SE-1515 DX12 ECG functions as a data management system, allowing for seamless integration with standalone ECG machines to facilitate a paperless workflow.
Key Features:
- Multifunctional Sampling Boxes: Provides comprehensive ECG solutions from 18/16/15/12/9-lead resting ECG to stress test, ECG data management, and ECG network gateway.
- Maximized Performance: High sampling rate, 24-bit A/D Converter, 140 dB CMRR, and 0.01~300 Hz bandwidth to ensure precise results.
- Bi-directional Communication: Allows for interaction with ECG machines on worklists and reports, facilitating a streamlined process.
- Clinically Oriented Methodologies: Incorporates practical workflow, reliable SEMIP® algorithm, and diverse outputs for effective and efficient diagnosis.
- User-Friendly: Features like color-coded lead wires, one-button start/stop, LED signal quality indicator, and built-in ECG glossary make the device intuitive and easy to use.
Technical Specifications:
- Sampling Rate: 16,000 Hz
- A/D Converter: 24 bit
- CMRR: 140 dB
- Bandwidth: 0.01~300 Hz
- Communication: Bi-directional
- Output Formats: PDF, XML, SCP, DICOM, JPG, BMP, and DOC.
- Connectivity: Compatible with HIS/EMR/PACs/CIS based on HL7/DICOM/GDT protocol.
