Description
The EdanUSA SE-1515 DP12 is a state-of-the-art, wired 12-channel ECG device that interfaces with your PC for advanced cardiac diagnostics. With an acquisition box and comprehensive software, this wired ECG delivers the resting ECG standard with Glasgow interpretation and offers an optional stress upgrade. The SE-1515 DP12 doesn't only conduct regular ECG tests but also functions as a data management system, linking standalone ECG machines for a paperless, efficient workflow.
Key Features:
- Multifunctional Sampling Boxes: Includes 18/16/15/12/9-lead resting ECG, stress test, ECG data management, and ECG network gateway functionalities.
- Maximized Performance: Boasts a 16,000 Hz sampling rate, 24-bit A/D converter, 140 dB CMRR, and 0.01~300 Hz bandwidth for highly accurate results.
- Bi-directional Communication: Allows interaction with ECG machines on worklists and reports, supporting smooth operations.
- Clinically Oriented Methodologies: Combines practical workflow, reliable SEMIP® algorithm, and varied outputs for efficient diagnoses.

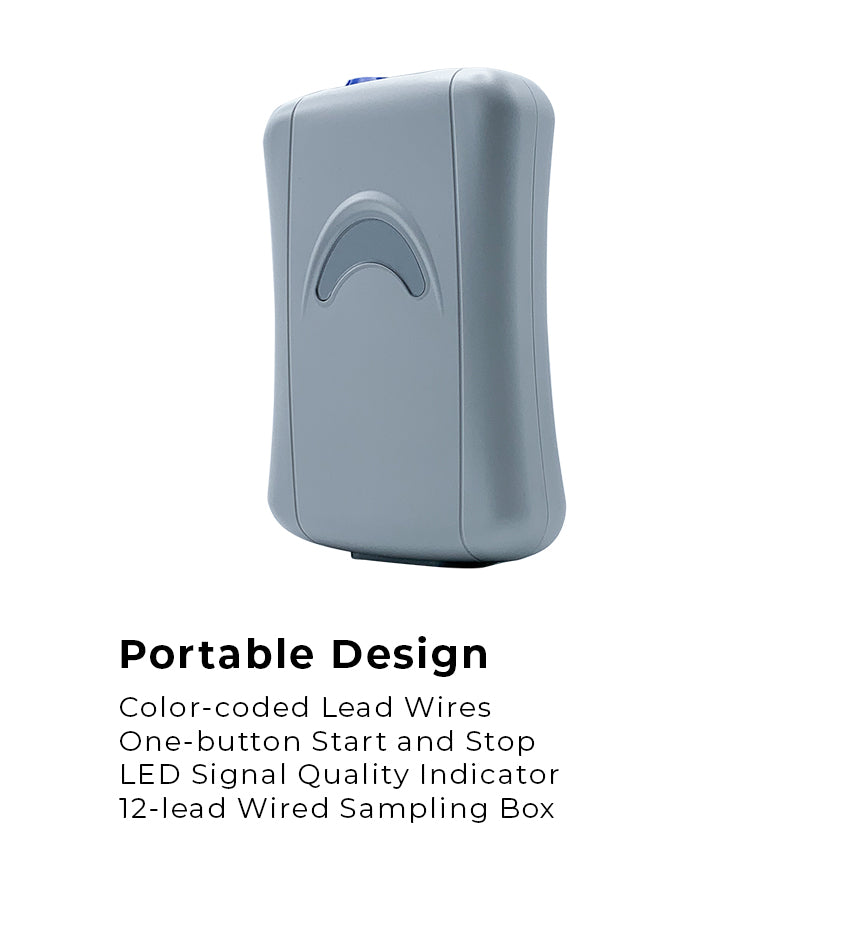

- User-friendly: Features include color-coded lead wires, one-button start/stop, LED signal quality indicator, and a built-in ECG glossary for intuitive operation.
Technical Specifications:
- Sampling Rate: 16,000 Hz
- A/D Converter: 24 bit
- CMRR: 140 dB
- Bandwidth: 0.01~300 Hz
- Communication: Bi-directional
- Output Formats: PDF, XML, SCP, DICOM, JPG, BMP, and DOC.
- Connectivity: Compatible with HIS/EMR/PACs/CIS based on HL7/DICOM/GDT protocol.
