Description

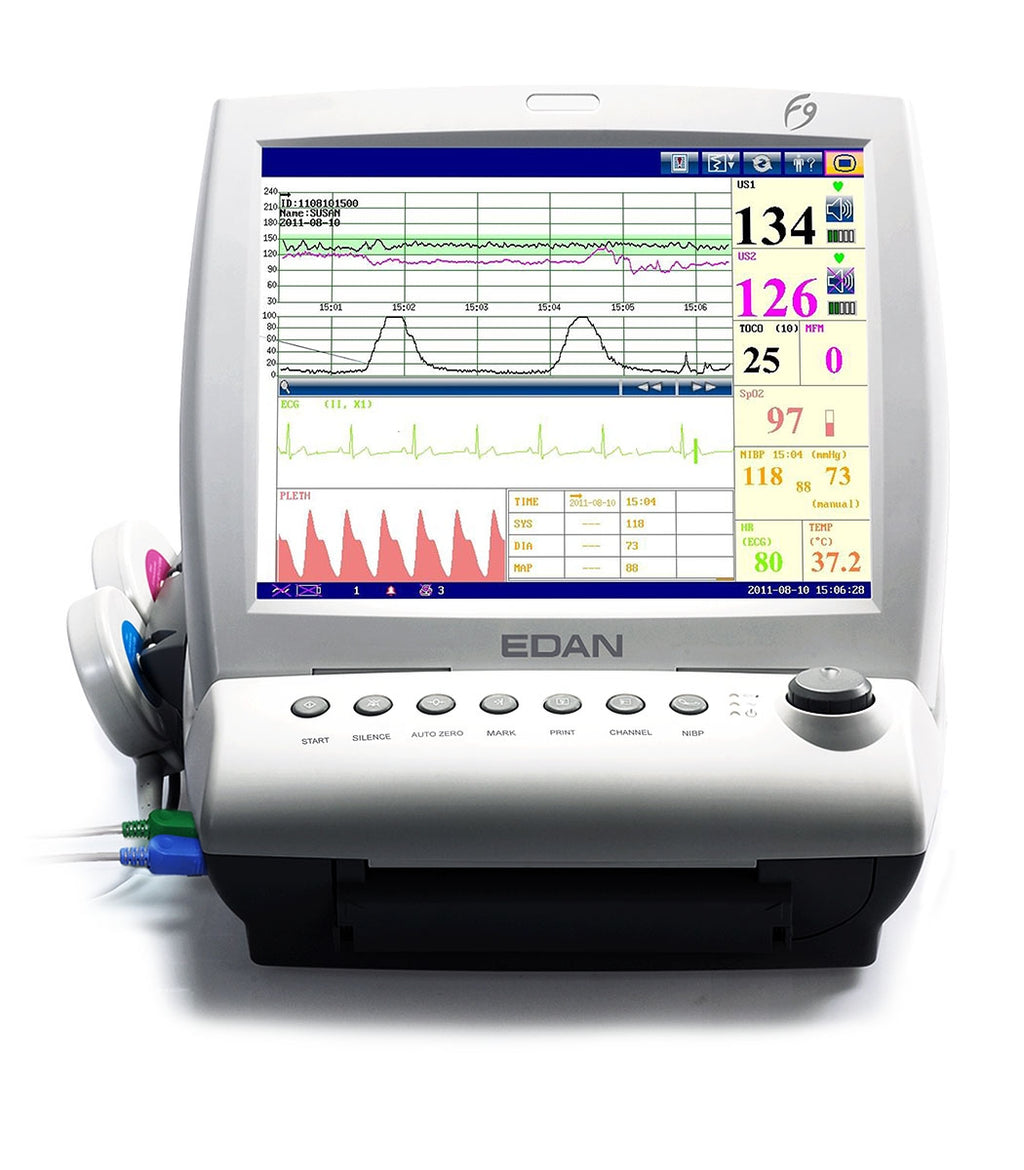

The EdanUSA F9 Express Fetal & Maternal Monitor with DECG/IUP is a premium fetal and maternal monitor that provides advanced integrated monitoring capabilities suitable for the delivery room in large hospitals, private obstetricians' offices, and antepartum clinics. The device is capable of continuous monitoring through the antepartum, intrapartum, and postpartum stages, offering complete monitoring solutions for both the mother and fetus.
Key Features:
- Comprehensive Monitoring: Basic parameters include twins FHR, TOCO, Event Mark, AFM, maternal ECG, NIBP, SpO2, and temperature. Internal parameters include IUP, DECG.
- Advanced Technology: 12-crystal pulse wave Doppler water-proof transducer for FHR detection and Signal Overlap Verification for Twins FHR (+20/-20 offset printing options).
- Data Management: 24 hours waveforms playback, quick printing for stored waveform, and real-time printing speeds of 1,2,3 cm/min.
- Connectivity: Optional built-in wireless module to connect to FTS-3 or Central Nursing Station, and software for data transmission to PC (Insight Software or CNS Lite).
- User-Friendly Display: 12.1 inches color touch screen for quick setup and optimized performance.
Technical Specifications:
- Dimensions: 347mm x 330mm x 126mm
- Weight: Approximately 6 kg
- Operating Voltage: 100 - 240V~
- Operating Frequency: 50/60Hz
- Battery: 14.8V/4400mAh rechargeable Li-ion battery
- Display: 12.1 inches color TFT-LCD with RGB 800 (W) x600 (H) resolution
- FHR Measurement Range: 50bpm ~ 240bpm
- TOCO Range: 0% ~ 100%
- DFHR Measurement Range: 30bpm ~ 240 bpm
- Pressure Range: 0 ~ 100mmHg
