Description

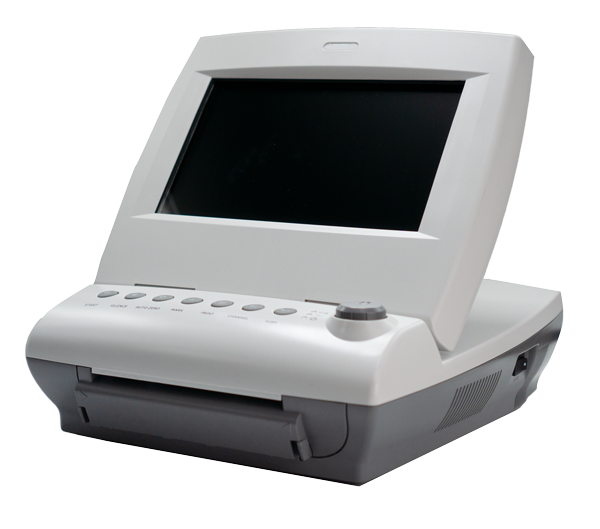

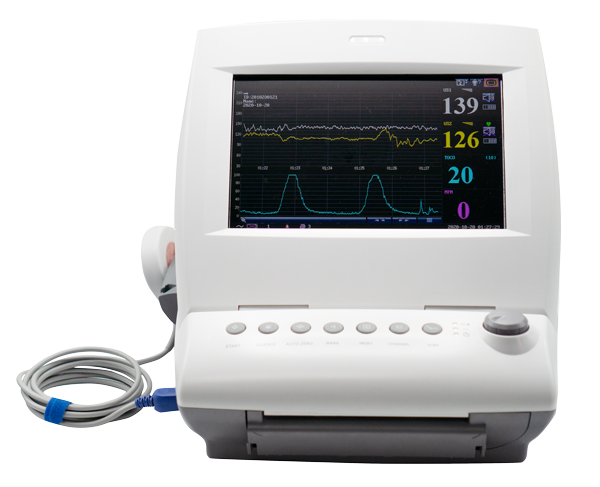

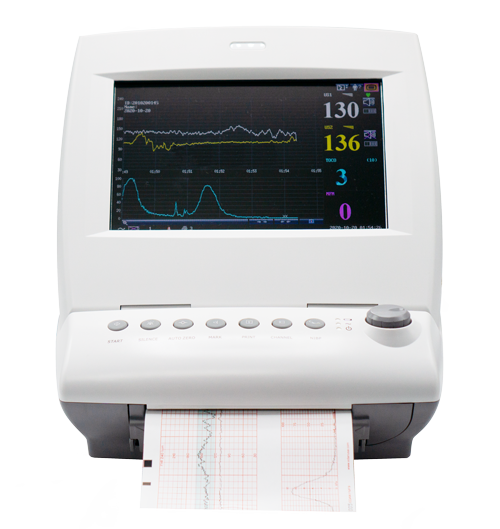

The EdanUSA F6 Fetal & Maternal Monitor is a dual twins fetal monitor featuring a 10.2" color LCD screen and thermal printer, offering a comprehensive and advanced solution for maternal and fetal monitoring.
Key features include:
- User-Friendly Design: Comes with a 10.1" foldable TFT color screen and a compact and portable design for easy handling. The probe rack provides easy positioning of the transducers.
- Advanced FHR Detection Technology: Includes a 1 MHz waterproof sensitive transducer with Signals Overlap Verification to differentiate twins FHR. The FHR signal quality indicator optimizes the probe's positioning.
- Powerful Data Management: Provides 60 hours of built-in memory for seamless monitoring, a MFM-CNS network for remote monitoring, and Insight software for efficient data management.
- Built-in Antepartum CTG Analysis: Offers objective and numerical assessment of CTG for easy FHR pattern reading.
- Maternal Monitoring: Monitors maternal ECG, HR/PR, NIBP, SpO2, and temperature.
Technical Specifications:
- Dimensions: 347mm x 330mm x 126mm
- Weight: Approximately 6 kg
- FHR Measurement Range: 50bpm ~ 240bpm
- TOCO Range: 0% ~ 100%
- AFM Range: 0 ~ 100 (%)
- DECG Measurement Range: 30bpm ~ 240 bpm
- Pressure Range: 0 ~ 100mmHg
- Display: 10.1” color TFT-LCD with RGB 800 (W) x480 (H) resolution
- Operating Voltage: 100 - 240V~
- Operating Frequency: 50/60Hz
- Battery: 14.8V/4400mAh rechargeable Li-ion battery
The monitor supports four viewing angles (15°, 30°, 45°, and 60°) for optimal visual comfort for caregivers.
