Description

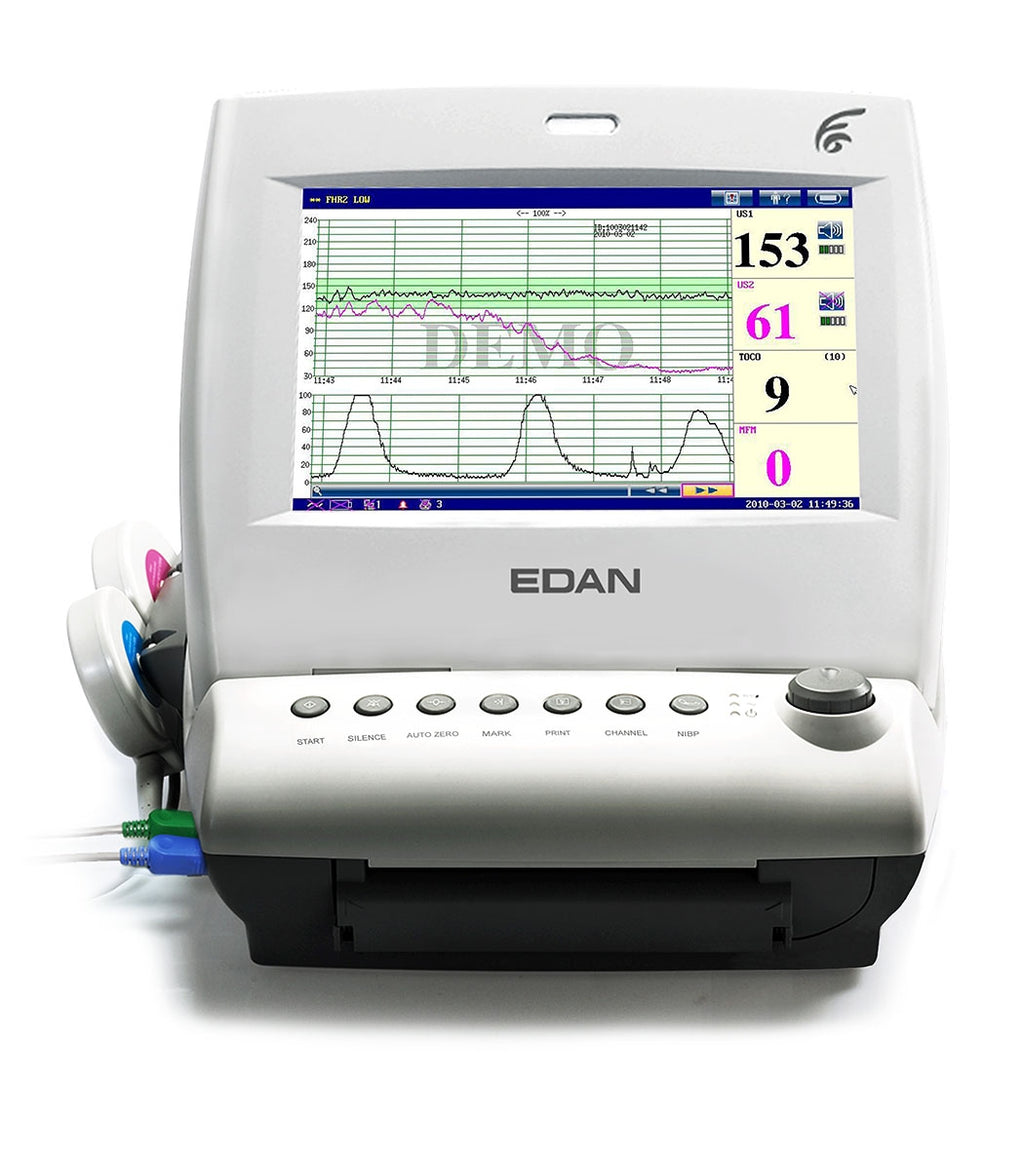

The EdanUSA F6 Express Fetal & Maternal Monitor is a sophisticated and high-end hospital-grade monitor, developed for multi-bed units with central station, yet simple enough for private practice. It integrates advanced fetal and maternal monitoring features to provide comprehensive non-stress test monitoring for pregnant women.
Key Features:
- User-Friendly Design: Features a 10.1" foldable TFT color screen, compact and portable design, and a probe rack for easy transducer positioning.
- Advanced FHR Detection Technology: Comes with a 1 MHz waterproof sensitive transducer, Signals Overlap Verification to differentiate twins FHR, and an FHR signal quality indicator to optimize the probe's positioning.
- Powerful Data Management: Provides 60 hours of built-in memory, MFM-CNS network for remote monitoring, and Insight software for data management.
- Maternal Monitoring: Monitors maternal ECG, HR/PR, NIBP, SpO2, and temperature.
- Integrated Parameters: Supports basic parameters like FHR, TOCO, Event Mark, AFM, and optional internal parameters: IUP/DECG.
- Printing Options: Compatible with 150/152mm wide paper printing with 1,2,3cm/min real-time printing speeds and quick printing for stored waveforms.
- High-Resolution Screen: Features a 10.2-inch high-resolution color folding up LCD screen.
- Portable Power: Powered by a Lithium battery for 4 hours of continuous working.
- Additional Features: Comes with a probe rack, wall mounting rack, and optional built-in wireless module for connectivity with a Central Nursing Station or FTS-3.
Technical Specifications:
- Dimensions: 347mm x 330mm x 126mm
- Weight: Approximately 6 kg
- FHR Measurement Range: 50bpm ~ 240bpm
- TOCO Range: 0% ~ 100%
- DECG Measurement Range: 30bpm ~ 240 bpm
- Pressure Range: 0 ~ 100mmHg
- Display: 10.1” color TFT-LCD with RGB 800 (W) x480 (H) resolution
- Operating Voltage: 100 - 240V~
- Operating Frequency: 50/60Hz
- Battery: 14.8V/4400mAh rechargeable Li-ion battery
