Description
The EdanUSA DUS60 is an entry-level black and white ultrasound system, well-regarded for its superior value and performance across a multitude of applications. Thanks to its PW Doppler capabilities, this compact ultrasound system delivers increased diagnostic value. Its applications extend across OB/GYN, Urology, Cardiology, Pediatrics, MSK, and more, with a broad range of different probes. The DUS60 also offers up to 2 hours of continuous operation with its built-in lithium battery, making it ideal for point-of-care imaging.
Key Features:
- Multi-Frequency Transducers: This ensures versatility in a wide range of medical situations.
- Comprehensive Imaging Modes: Includes B, 2B, 4B, B+M, M, and PW imaging modes.
- Highly Portable: Compact and lightweight design with a built-in battery for excellent mobility.
- Advanced Imaging Processing: Dynamic range, gain, 8-segment TGC adjustment, and IP image processing for optimal imaging.
- Substantial Data Storage: Built-in Flash and 504MB built-in image storage.

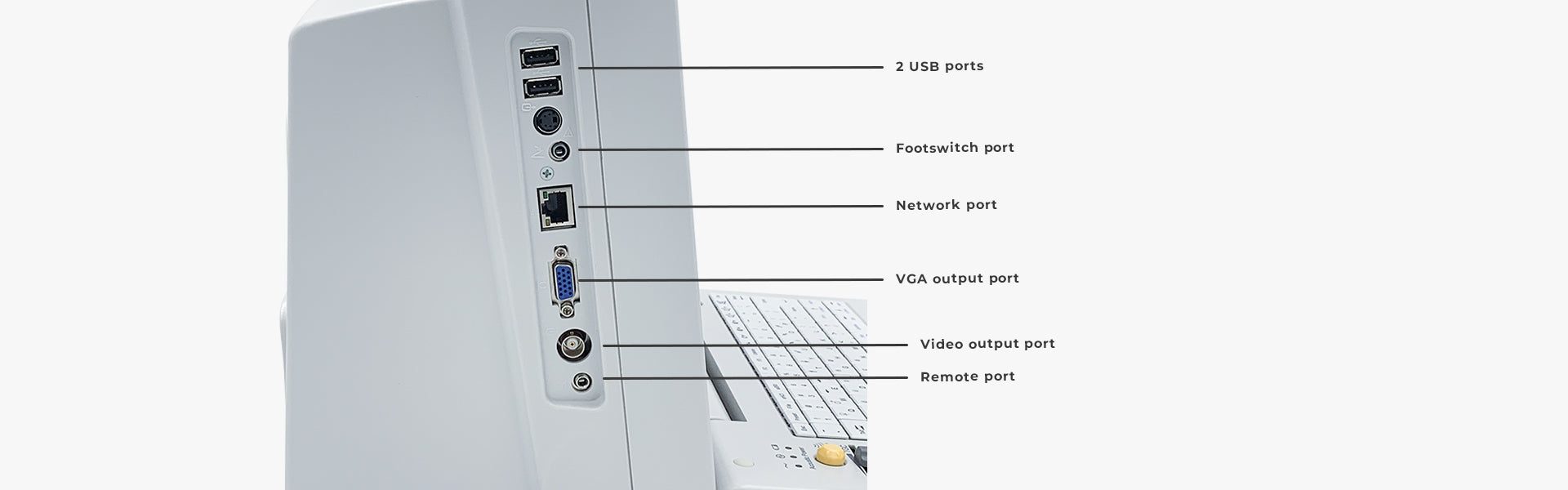

- Robust Connectivity: Comes with two USB ports, an Ethernet port, S-video output, and a VGA output port.

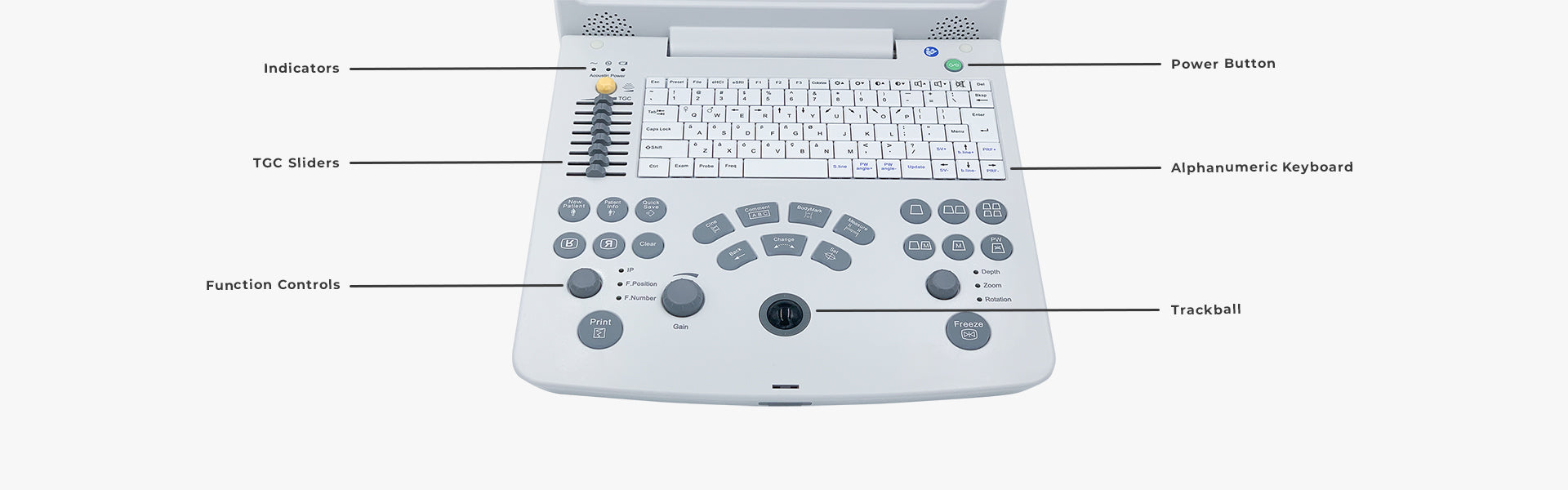

- Ease of Use: Features a backlit, easy-to-use control panel and user-defined keys for workflow customization.
Technical Specifications:
- Display: 12.1” TFT-LCD
- Transducer Frequency: 2.0-10.0 MHZ
- Scanning Depth: From 19 to 324 mm (transducer dependent)
- Cine Loop: 256 frames bidirectional cine-loop
- Power Supply: 100V-240V~50Hz/60Hz
- Lithium Battery: Up to 2 hours continuous operation
- Dimensions: 330mm (L) X 220mm (W) X 320mm (H)
- Net Weight: 7.1kg
