Description
OEM Part Number Cross References:
| Manufacturer | OEM Part # |
|---|---|
| AMC | CB-A4001006VN10 |
| Pacific Medical | NXPH2025-10 |
| Philips | M1943AL, 989803128651 |
| Sage | E01-30M |
Compatibility:
| Manufacturer | Model |
|---|---|
| Philips |
FM20, FM30, FM40, FM50, Heartstream XL, IntelliVue FAST-SpO2, IntelliVue MMS X2, IntelliVue MMS X3, IntelliVue MP70, IntelliVue MX40, IntelliVue MX400, IntelliVue MX450, IntelliVue MX500, IntelliVue MX550, IntelliVue MX600, IntelliVue MX700, IntelliVue MX800, M1020B, M2601A, M2705A, M3000A, M3001A, M3001A A01, M3001A A01C06, M3001A A01C12, M3001A A01C18, M3002A MMS X2, M3500B, M4735A, M8102A MP2, M8105A MP5, MP 30, MP 50, SureSigns VM1, SureSigns VM6, SureSigns VS2, SureSigns VS3, SureSigns VS4, VM4, VM6
|

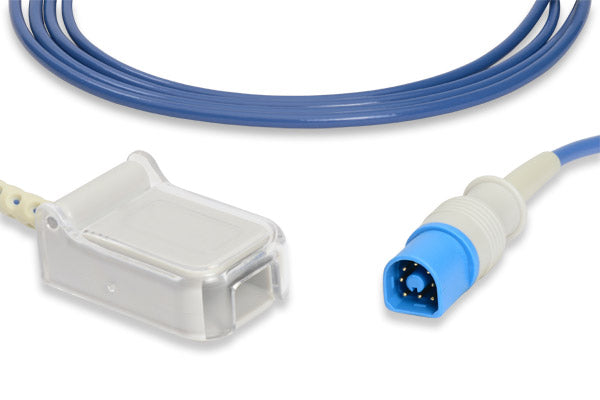

Technical Specifications:
| Cable Color | Blue |
|---|---|
| Cable Diameter | 4 mm |
| Cable Material | TPU Jacket |
| Category | SpO2 |
| Certifications | FDA, CE, ISO 80601-2-61:2011, ISO10993-1, 5, 10:2003E, TUV, RoHS Compliant |

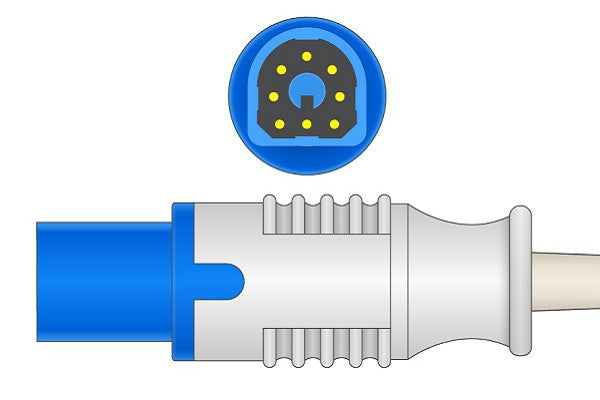

| Connector Distal | Philips 8-pin D-Shaped Male Connector |

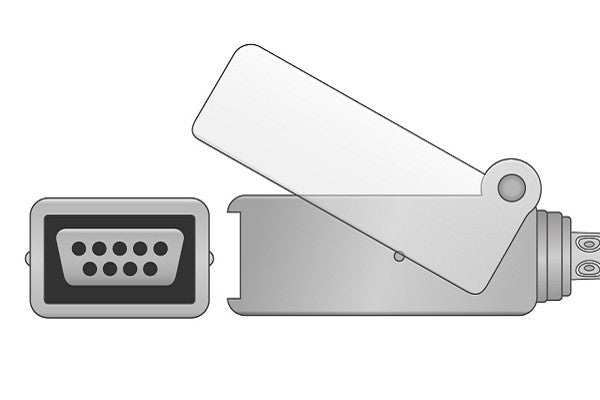

| Connector Proximal | Female 9-Pin D-Sub Connector |
| Latex-free | Yes |
| Packaging Type | Bag |
| Packaging Unit | 1 |
| SpO2 Technology | Nellcor OxiSmart |
| Sterile | No |
| Total Cable Length | 10 ft |
| Warranty | 12 months |
| Weight | 0.3lb |
