Description
OEM Part Number Cross References:
| Manufacturer | OEM Part # |
|---|---|
| AMC | PR-A800-1006V |
| Philips | M1195A, 989803103261 |
| Sage | P018S-30M |
Compatibility:
| Manufacturer | Model |
|---|---|
| Goldway |
G40
|
| Philips |
C1, C3, FM20, FM30, FM40, FM50, HP Viridia 24C, HeartStart MRx, M2705A, M3, M3001A, M3001A A01, M3001A A01C06, M3001A A01C12, M3001A A01C18, M4, M4841A, MP 20, MP 30, MP 40, MP 50, MP 60, MP 70, MP 80, MP 90, Philips Heartstart defibrillator and IntelliVue, SureSigns VM1, SureSigns VS2, SureSigns VS3, SureSigns VSi, VM4, VM6, VM8, Viridia 24C
|
| Solaris |
NT2A, NT2C
|
Technical Specifications:
| Cable Color | Gray |
|---|---|
| Cable Diameter | 4 splitting to 2.5*2 mm |
| Cable Material | TPU Jacket |
| Category | SpO2 |
| Certifications | FDA, CE, ISO 80601-2-61:2011, ISO10993-1, 5, 10:2003E, TUV, RoHS Compliant |

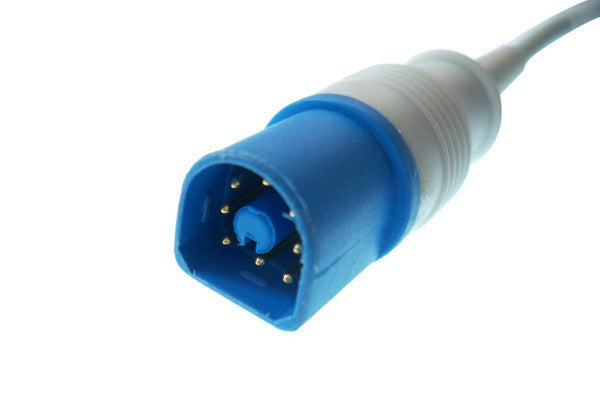

| Connector Distal | Philips 8-pin D-Shaped Male Connector |
| Connector Proximal | Infant soft |
| Latex-free | Yes |
| Packaging Type | Bag |
| Packaging Unit | 1 |
| Patient Size | Infant (3-15Kg) |
| SpO2 Technology | OxiSmart |
| Sterile | No |
| Total Cable Length | 3.5 ft |
| Warranty | 12 months |
| Weight | 0.2lb |
