Description

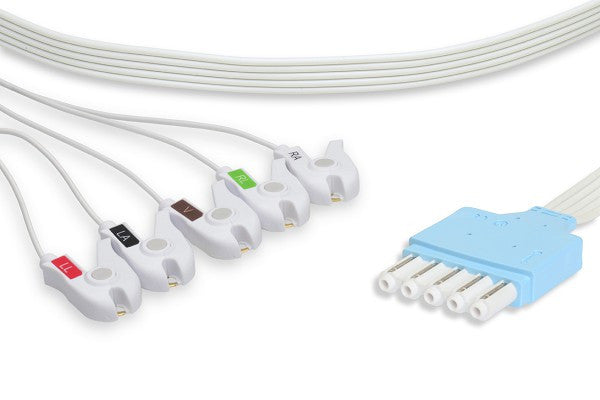

The Cables & Sensors Disposable ECG Leadwire is a high-quality leadwire designed for reliable ECG monitoring. It features 5 leads with pinch/grabber connectors and is compatible with Philips medical equipment. The leadwire is suitable for use with various Philips models, including 78352C, 78354C, 78834C, HeartStart MRx, IntelliVue, M3000A, M8102A MP2, and more (see compatibility list below).
OEM Part Number Cross References:
- 3M: 70200762915 (4 ft 50¨) (YMDLW5P)
- AMC: LW-309DS50/5A, LW-329DS50/5A
- Curbell: DLP-05BK-40AS-0100
- Philips: 989803173131
Compatibility:
- Philips: 78352C, 78354C, 78834C, 862472, 862473, 862474, 862475, 862478, 862479, 863064, 863065, 863066, 863068, C3, HeartStart MRx, HeartStart XL, IntelliVue, M1001A, M1001B, M1002A, M1002B, M3000A, M3001A, M3002A MMS X2, M3535A, M3536A, M4735A, M8102A MP2, M8105A MP5, SureSigns VM6, SureSigns VM8
Technical Specifications:
- Category: ECG
- Certifications: FDA, CE, ISO10993-1, 5, 10:2003E, TUV, RoHS Compliant

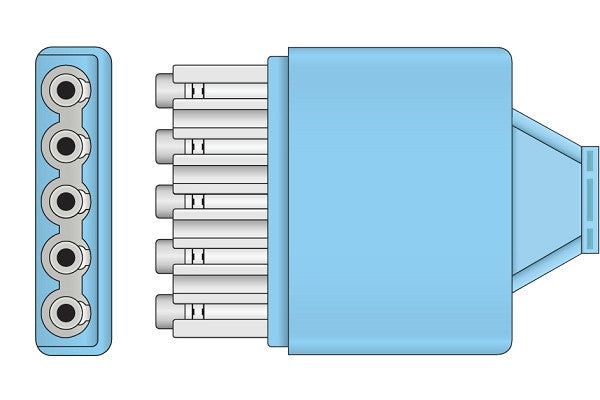

- Connector Distal: Din-Style
- Connector Proximal: Pinch/Grabber
- Latex-free: Yes
- Lead Cable Color: White
- Lead Cable Diameter: 4 mm
- Lead Cable Length Limb: 3 ft
- Lead Cable Length V: 3 ft
- Lead Cable Material: PVC Jacket
- Lead Color Coding: AHA
- Lead Number: 5
- Packaging Type: Box
- Packaging Unit: 10 leads per box
- Patient Size: Adult/Pediatric
- Sterile: No
- Weight: 0.9 lb
The Cables & Sensors Disposable ECG Leadwire is a reliable and convenient option for accurate ECG monitoring, backed by its compatibility with Philips medical equipment and adherence to industry certifications. Each box contains 10 leads.
