Description
This Cables & Sensors ECG trunk cable is designed to replace OEM part numbers from Draeger and Sage. The cable can replace the following part numbers:
OEM Part Number Cross References:
| Manufacturer | OEM Part # |
|---|---|
| Draeger | 3368391, 5950192 (1.5 meter cable), 5950196 |
| Sage | T09-25M |
Compatibility:
| Manufacturer | Model |
|---|---|
| Draeger | Infinity C500, Infinity C700, Infinity Delta, Infinity Delta XL, Infinity Gamma, Infinity Gamma X, Infinity Gamma XL, Infinity Kappa, Infinity Kappa XLT, Infinity Omega S, Infinity Vista, Infinity Vista XL, SC 6000, SC 7000, SC 9000 |

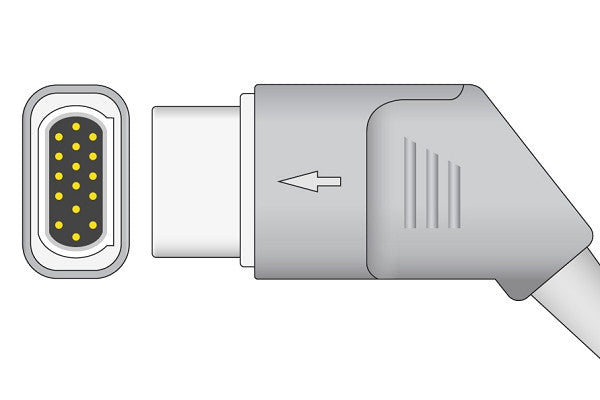

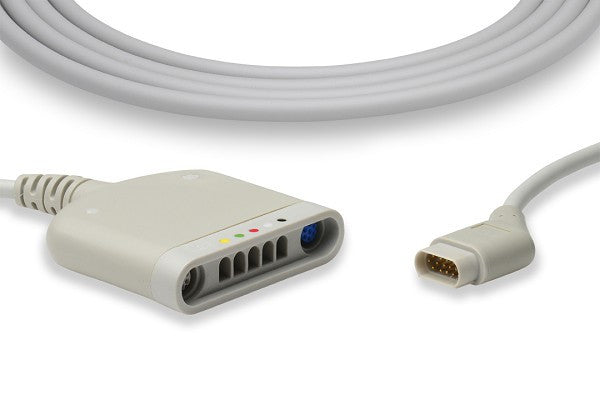

The trunk cable has a rectangular 16-pin Draeger Infinity Connector at its distal end and twin pin and dual 7-pin connectors at its proximal end. It has a length of 8 feet and is gray. The trunk cable is made from TPU material.
The cable is latex-free, sterile, and is compliant with FDA, CE, ISO10993-1, 5, 10:2003E, TUV, and RoHS standards. It is suitable for both adult and pediatric patients. The package contains one cable.
